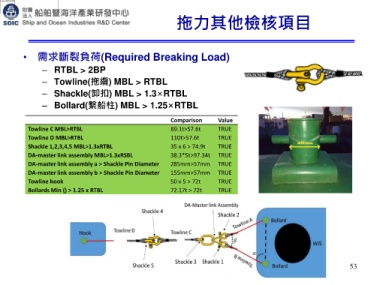

拖力其他檢核項目
• 需求斷裂負荷(Required Breaking Load)
– RTBL > 2BP
– Towline(拖纜) MBL > RTBL
– Shackle(卸扣) MBL > 1.3×RTBL
– Bollard(繫船柱) MBL > 1.25×RTBL
Comparison Value
Towline C MBL>RTBL 89.1t>57.6t TRUE
Towline D MBL>RTBL 110t>57.6t TRUE
Shackle 1,2,3,4,5 MBL>1.3xRTBL 35 x 6 > 74.9t TRUE
DA-master link assembly MBL>1.3xRSBL 38.3*5t>97.34t TRUE
DA-master link assembly a > Shackle Pin Diameter 285mm>57mm TRUE
DA-master link assembly b > Shackle Pin Diameter 155mm>57mm TRUE
Towline hook 50 x 5 > 72t TRUE
Bollards Min () > 1.25 x RTBL 72.17t > 72t TRUE
